• Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18642
    • Brand: Musaphonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Line / Batteries (any type)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: X260 - General Electric Co. GE;
  • Notes
  • Batterie-Netz (Dioden!). Waves: STD (540-1600KC), 49M, 31M, 25M, 19M, 16M, LOG.
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.

 Collections | Museums | Literature

Collections

The model X260 is part of the collections of the following members.

 Forum

Forum contributions about this model: General Electric Co.: X260

Threads: 1 | Posts: 1

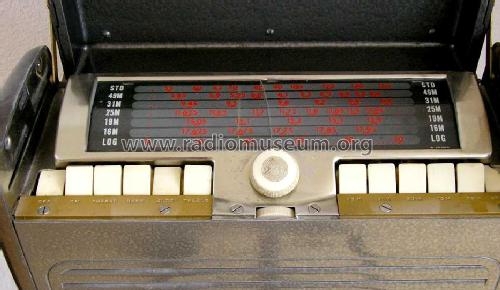

Short Wave Receiver.

Cast aluminium case

Waves:STD,49M, 31M,25M,19M,16M,LOG

Tuning Range:540-1600KC

                   6,0-6,5MC

                   9,5-9,85MC

                   11,7-11,9MC                    455 KC    IF

                   15,1-15,4MC                     Sector- Batteriy(2V)    12 Watts

                   17,7-17,9MC



Roger Florus, 14.Jul.03
