Grunow 560 Ch= 5-E

Grunow 560 Ch= 5-E; General Household (ID = 681274) Radio

Grunow 560 Ch= 5-E; General Household (ID = 681275) Radio
Grunow 560 Ch= 5-E; General Household (ID = 893382) Radio Grunow 560 Ch= 5-E; General Household (ID = 893383) Radio

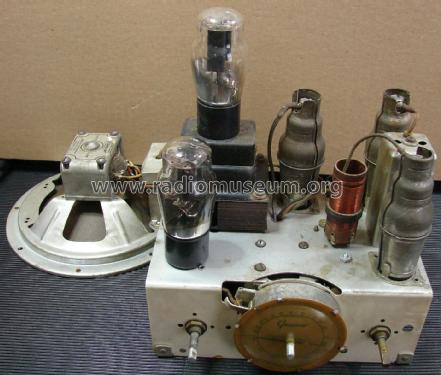

Grunow 560 Ch= 5-E; General Household (ID = 2510618) Radio Grunow 560 Ch= 5-E; General Household (ID = 2510624) Radio
Grunow 560 Ch= 5-E; General Household (ID = 2510628) Radio
Use red slider bar for more.
Grunow 560 Ch= 5-E; General Household (ID = 893382) Radio
General Household: Grunow 560 Ch= 5-E [Radio] ID = 893382 748x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow 560 Ch= 5-E, General Household Utilities Co. (Grunow); Chicago Ill.:
Grunow 560 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Grunow 560 Ch= 5-E - General Household Utilities Co
Dimensions (WHD) 9.75 x 14 x 7 inch / 248 x 356 x 178 mm
Net weight (2.2 lb = 1 kg) 13 lb 0 oz (13 lb) / 5.902 kg
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before


All listed radios etc. from General Household Utilities Co. (Grunow); Chicago Ill.
Here you find 138 models, 99 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
