Grunow 586 Ch= 5-W

Grunow 586 Ch= 5-W; General Household (ID = 299834) Radio
Grunow 586 Ch= 5-W; General Household (ID = 1237143) Radio
Use red slider bar for more.
Grunow 586 Ch= 5-W; General Household (ID = 1237143) Radio

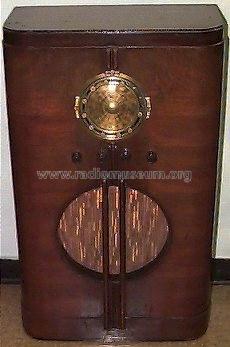

General Household: Grunow 586 Ch= 5-W [Radio] ID = 1237143 230x347
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow 586 Ch= 5-W, General Household Utilities Co. (Grunow); Chicago Ill.:
Photo courtesy of John Goller K9UWA via the Radio Attic's Archives

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 41 or 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Grunow 586 Ch= 5-W - General Household Utilities Co
Material Wooden case
External source of data Ernst Erb
Literature/Schematics (1) Rider's Perpetual, Volume 9 = 1938 and before (page 2)
