Grunow Teledial 588 Ch= 5-W

Grunow Teledial 588 Ch= 5-W; General Household (ID = 299843) Radio
Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135403) Radio Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135405) Radio
Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135404) Radio Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135406) Radio
Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135407) Radio Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135408) Radio
Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135409) Radio Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135410) Radio
Grunow Teledial 588 Ch= 5-W; General Household (ID = 396241) Radio Grunow Teledial 588 Ch= 5-W; General Household (ID = 396249) Radio
Use red slider bar for more.
Grunow Teledial 588 Ch= 5-W; General Household (ID = 2135403) Radio
General Household: Grunow Teledial 588 Ch= 5-W [Radio] ID = 2135403 1400x1088
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow Teledial 588 Ch= 5-W, General Household Utilities Co. (Grunow); Chicago Ill.:

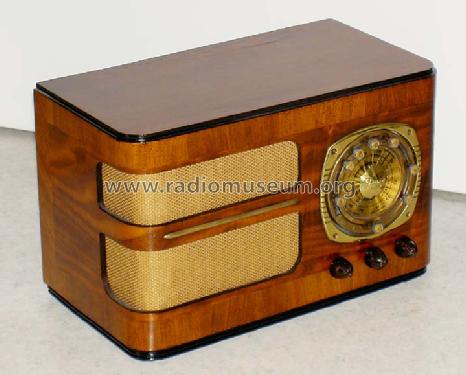

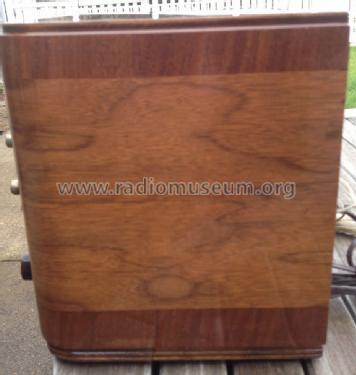

Radio has been refinished and grill cloth is not original

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 41 or 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Grunow Teledial 588 Ch= 5-W - General Household Utilities Co
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14.25 x 9 x 7.75 inch / 362 x 229 x 197 mm
Notes

See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

Net weight (2.2 lb = 1 kg) 15 lb 6 oz (15.375 lb) / 6.980 kg
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Mentioned in Table Top Radios Vol. 1 Stein 98 (See pictures)

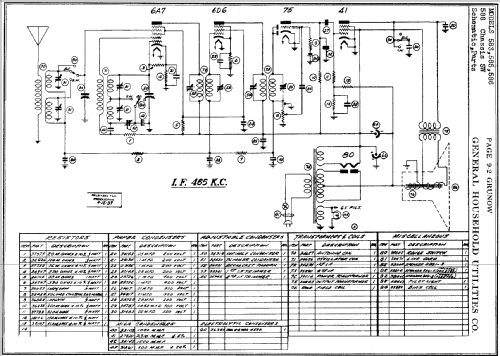

Literature/Schematics (1) Rider's Perpetual, Volume 9 = 1938 and before (page 2)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1937.)
Literature/Schematics (3) The Grunow Folder for 1938.


All listed radios etc. from General Household Utilities Co. (Grunow); Chicago Ill.
Here you find 138 models, 99 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
