Grunow 632 Teledial Ch= 6-H

Grunow 632 Teledial Ch= 6-H; General Household (ID = 683222) Radio
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216152) Radio Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216153) Radio
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216157) Radio Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216155) Radio
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216154) Radio Grunow 632 Teledial Ch= 6-H; General Household (ID = 1006669) Radio
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1420161) Radio Grunow 632 Teledial Ch= 6-H; General Household (ID = 1006666) Radio
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1006667) Radio Grunow 632 Teledial Ch= 6-H; General Household (ID = 1655744) Radio
Use red slider bar for more.
Grunow 632 Teledial Ch= 6-H; General Household (ID = 1216152) Radio
General Household: Grunow 632 Teledial Ch= 6-H [Radio] ID = 1216152 928x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow 632 Teledial Ch= 6-H, General Household Utilities Co. (Grunow); Chicago Ill.:

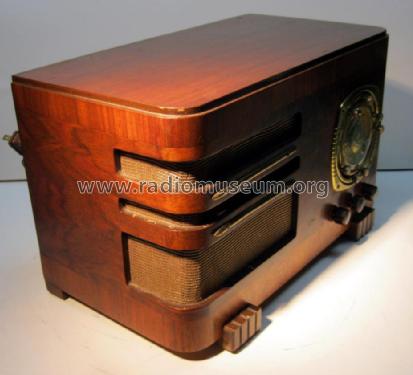

Photo from eBay auction 150795674572 sold by radionut5

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7 6A8 6K7 6Q7 6F6G 80
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Grunow 632 Teledial Ch= 6-H - General Household Utilities Co
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15.875 x 9.75 x 9.25 inch / 403 x 248 x 235 mm
Notes

Wood with brass. See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

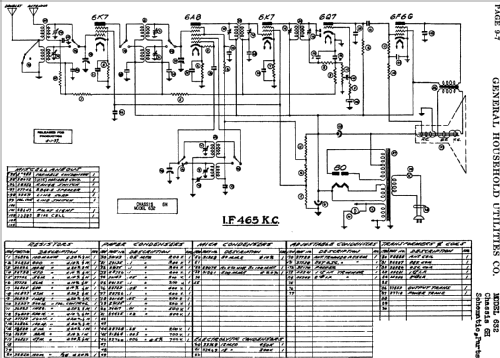

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Radio Retailing (Radio & Television R.) (June 1937.)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 90.)
Literature/Schematics (3) The Grunow Folder for 1938.


All listed radios etc. from General Household Utilities Co. (Grunow); Chicago Ill.
Here you find 138 models, 99 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
