For model Grunow 700 Ch= 7-A, General Household Utilities Co. (Grunow); Chicago Ill.:
Picture courtesy of Jim Moneghan of Lincoln Electronics

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 78 37 78 78 75 42 80
Main principle Superhet with RF-stage; ZF/IF 262 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Grunow 700 Ch= 7-A - General Household Utilities Co
Material Wooden case

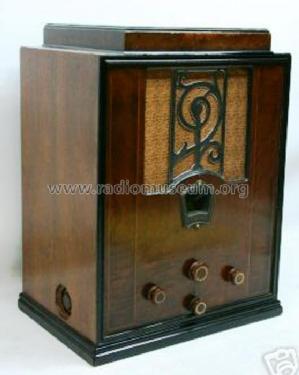

Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13 x 18 x 9.5 inch / 330 x 457 x 241 mm
Notes

Wood with chrome grille.

Stein "Cathedral & Tombstone Radios" lists 2 bands for this model.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Mentioned in Machine Age to Jet Age II (page 154.)
Literature/Schematics (1) Cathedral & Tombstone Radios (page 132.)
