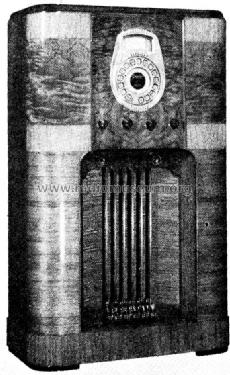

Grunow 1081 Teledial 10-G

Grunow 1081 Teledial 10-G; General Household (ID = 1237212) Radio
Grunow 1081 Teledial 10-G; General Household (ID = 1729140) Radio Grunow 1081 Teledial 10-G; General Household (ID = 1005595) Radio
Grunow 1081 Teledial 10-G; General Household (ID = 1005596) Radio Grunow 1081 Teledial 10-G; General Household (ID = 1005597) Radio
Grunow 1081 Teledial 10-G; General Household (ID = 1655591) Radio Grunow 1081 Teledial 10-G; General Household (ID = 1009841) Radio
Grunow 1081 Teledial 10-G; General Household (ID = 1128340) Radio Grunow 1081 Teledial 10-G; General Household (ID = 1009840) Radio
Use red slider bar for more.
Grunow 1081 Teledial 10-G; General Household (ID = 1729140) Radio
General Household: Grunow 1081 Teledial 10-G [Radio] ID = 1729140 747x929
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grunow 1081 Teledial 10-G, General Household Utilities Co. (Grunow); Chicago Ill.

Country:  United States of America (USA)
Manufacturer / Brand:  General Household Utilities Co. (Grunow); Chicago Ill.
Brand

Grunow (trade name)
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6K7 6A8 6K7 6J7 6K7 6H6 6N7 6F6G 6F6G 5Z3
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Grunow 1081 Teledial 10-G - General Household Utilities Co
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 25.375 x 41 x 16 inch / 645 x 1041 x 406 mm
Notes

Teledial Automatic Frequency Control. See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

Source of data Pre-War Consoles

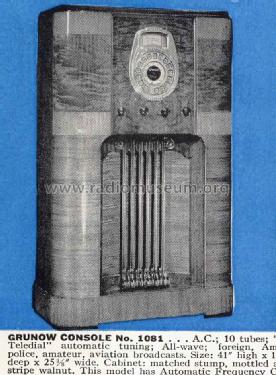

Mentioned in Radio Retailing (Radio & Television R.) (June 1937.)
Literature/Schematics (1) Rider's Perpetual, Volume 9 = 1938 and before (p. 11, 12)
Literature/Schematics (3) The Grunow Folder for 1938.

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.



All listed radios etc. from General Household Utilities Co. (Grunow); Chicago Ill.
Here you find 138 models, 99 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
