T23L1 Ch= T12V2C
General Electric-Kirby Appliances Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- General Electric-Kirby Appliances Ltd.; Sydney
- Year
- 1965
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 292154
- Number of Tubes
- 13
- Number of Transistors
- Semiconductors
- 1N617 or. GD8 or. SFD108 1N617 or. GD8 or. SFD108 1N617 or. GD8 SFD108 OA210 or. 1N1763 OA210 or. 1N1763
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 180-275 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: T23L1 Ch= T12V2C - General Electric-Kirby
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 27 x 30 x 14.25 inch / 686 x 762 x 362 mm
- Notes
-

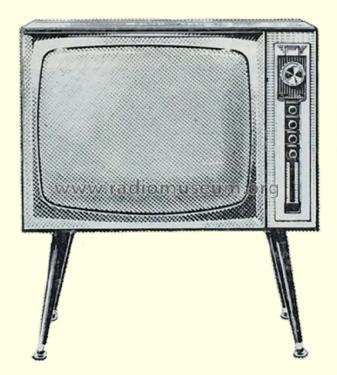

General Electric (Australia) Model T23L1
A 23" lowboy TV receiver finished in maple or walnut in full gloss.
Features: 13-channel tuner with preset fine tuning; illuminated channel indicator. Uses Shelbond picture tube. Diecast mask and control panel. Front-mounted 5" speaker.
Front-mounted controls include brightness, contrast, volume, vertical and horizontal hold, on-off. (FROM MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 145.95 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1965.)
- Literature/Schematics (1)
- -- Original-techn. papers. (General Electric Service Information.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Group G14, April 1971, Page G12a)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
