Day-Fan 6 AC 5065 & 5525 or 5525
Day-Fan Electric Co.; Dayton, Ohio (Fan and Motor Company)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Day-Fan Electric Co.; Dayton, Ohio (Fan and Motor Company)
- Year
- 1928 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 42862
-
- alternative name: Dayton Fan and Motor Co.

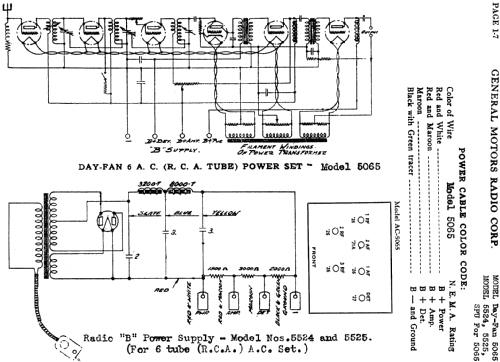

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- from Radiomuseum.org
- Model: Day-Fan 6 AC 5065 & 5525 or 5525 - Day-Fan Electric Co.; Dayton,
- Notes
- Model 5065 in combination with a type 5524 or 5525 power supply unit. Both Grinders Collectors Guide and Riders are in error when they allocate pre 1930 models to GM Radio.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
