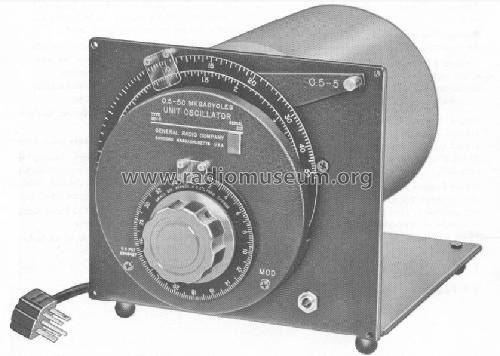

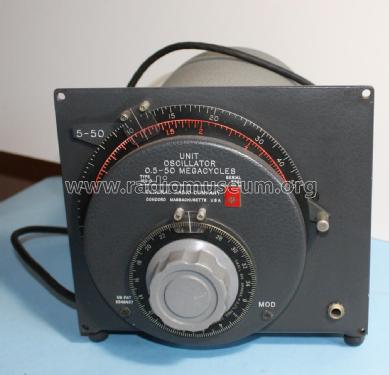

Unit Oscillator 1211-C

Unit Oscillator 1211-C; General Radio (ID = 293420) Equipment
Unit Oscillator 1211-C; General Radio (ID = 2543605) Equipment Unit Oscillator 1211-C; General Radio (ID = 2543606) Equipment
Unit Oscillator 1211-C; General Radio (ID = 2543608) Equipment Unit Oscillator 1211-C; General Radio (ID = 1322643) Equipment
Unit Oscillator 1211-C; General Radio (ID = 1322644) Equipment
Use red slider bar for more.
Unit Oscillator 1211-C; General Radio (ID = 2543605) Equipment
General Radio: Unit Oscillator 1211-C [Equipment] ID = 2543605 1400x1430
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unit Oscillator 1211-C, General Radio Company; Cambridge (MA):
USA_GENERAL RADIO 1211-C range 1

Country:  United States of America (USA)
Manufacturer / Brand:  General Radio Company; Cambridge (MA)
alternative name

GenRad
Year: 1962 Category: Service- or Lab Equipment
Valves / Tubes 1: 5763
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Unit Oscillator 1211-C - General Radio Company;
Notes

Dual band RF-generator 0.5 - 50 MHz.  Requires 6.3 VAC for filament and approximately 250 V DC for B+ supplied by the 1269-A power supply.

Source of data -- Collector info (Sammler)
Literature/Schematics (1) -- Schematic

Model page created by a member from I. See "Data change" for further contributors.
