56B-CB chrome face; wood

56B-CB ; Gilfillan Bros.Inc.; (ID = 1644430) Radio 56B-CB ; Gilfillan Bros.Inc.; (ID = 1644431) Radio
56B-CB ; Gilfillan Bros.Inc.; (ID = 1644429) Radio 56B-CB ; Gilfillan Bros.Inc.; (ID = 1644425) Radio
56B-CB ; Gilfillan Bros.Inc.; (ID = 1644428) Radio 56B-CB ; Gilfillan Bros.Inc.; (ID = 1644432) Radio
Use red slider bar for more.

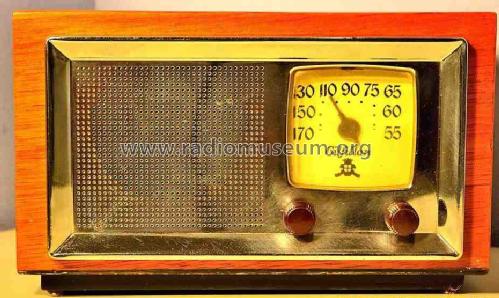

56B-CB ; Gilfillan Bros.Inc.; (ID = 1644430) Radio
Gilfillan Bros.Inc.;: 56B-CB [Radio] ID = 1644430 932x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model 56B-CB chrome face; wood, Gilfillan Bros.Inc.; Los Angeles (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BE6 12BA6 12AT6 50B5 35W4 35Z5GT
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 56B-CB [chrome face; wood] - Gilfillan Bros.Inc.; Los
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Alternative tube assembly: 12BE6 12BA6 12AT6 50B5 35W4 or 35Z5GT

Of the Gilfillan 56 a family of 6 different variants is known:

56 A, dark brown wooden case

56 B, wooden case, copper face

56 B-CB, wooden case, chrome face

56 C, plastic case

56 D, no details known, mentioned only in schematic

56 E, blonde wooden case

Model page created by David Gilfillan. See "Data change" for further contributors.
