5B8 ; Gilfillan Bros.Inc.; (ID = 703186) Radio
5B8 ; Gilfillan Bros.Inc.; (ID = 477090) Radio 5B8 ; Gilfillan Bros.Inc.; (ID = 477091) Radio
5B8 ; Gilfillan Bros.Inc.; (ID = 878296) Radio 5B8 ; Gilfillan Bros.Inc.; (ID = 1213375) Radio
5B8 ; Gilfillan Bros.Inc.; (ID = 1213377) Radio 5B8 ; Gilfillan Bros.Inc.; (ID = 1213378) Radio
5B8 ; Gilfillan Bros.Inc.; (ID = 1213379) Radio 5B8 ; Gilfillan Bros.Inc.; (ID = 1544146) Radio
Use red slider bar for more.
5B8 ; Gilfillan Bros.Inc.; (ID = 477090) Radio

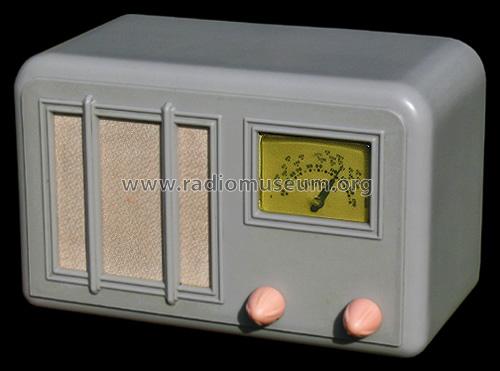

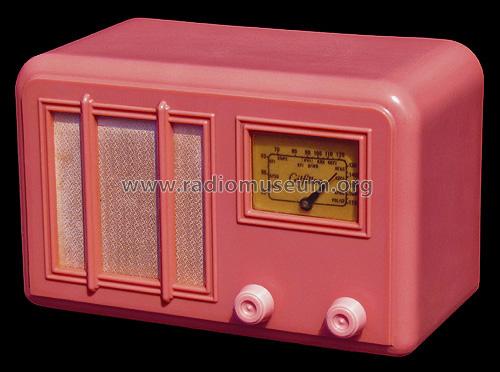

Gilfillan Bros.Inc.;: 5B8 [Radio] ID = 477090 500x372
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5B8, Gilfillan Bros.Inc.; Los Angeles (CA):
from: ..indianaradios.com

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6F6 5W4
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5B8 - Gilfillan Bros.Inc.; Los
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.2 x 6.75 x 5.5 mm / 0.4 x 0.3 x 0.2 inch
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Machine Age to Jet Age II (page 149.)


All listed radios etc. from Gilfillan Bros.Inc.; Los Angeles (CA)
Here you find 184 models, 111 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
