5G-T ; Gilfillan Bros.Inc.; (ID = 703353) Radio
Use red slider bar for more.
5G-T ; Gilfillan Bros.Inc.; (ID = 703353) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1941 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6V6GT 5W4
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 5G-T - Gilfillan Bros.Inc.; Los
Notes Built-in loop antenna.
External source of data Ernst Erb

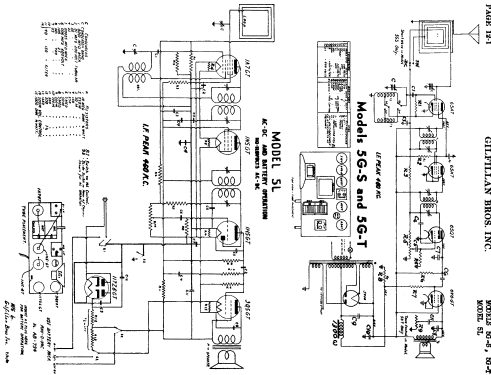

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
