5-L ; Gilfillan Bros.Inc.; (ID = 703292) Radio
5-L ; Gilfillan Bros.Inc.; (ID = 1594322) Radio 5-L ; Gilfillan Bros.Inc.; (ID = 1594323) Radio
Use red slider bar for more.
5-L ; Gilfillan Bros.Inc.; (ID = 1594322) Radio
Gilfillan Bros.Inc.;: 5-L [Radio] ID = 1594322 933x585

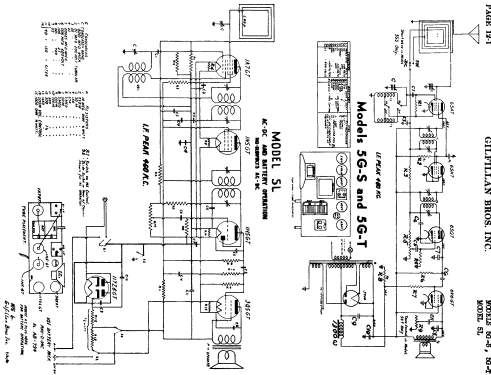

Select picture or schematic to display from thumbnails on the right and click for download.
For model 5-L, Gilfillan Bros.Inc.; Los Angeles (CA):
Scanned from the Gilfillan Folder for 1942.

Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7GT 1N5GT 1H5GT 3Q5GT 117Z6GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / ACDC= 110 / Bat= 7,5 & ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5-L - Gilfillan Bros.Inc.; Los
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11.75 x 9.75 x 5.5 inch / 298 x 248 x 140 mm
Notes

Built-in loop antenna.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (3) The Gilfillan Folder for 1942.
