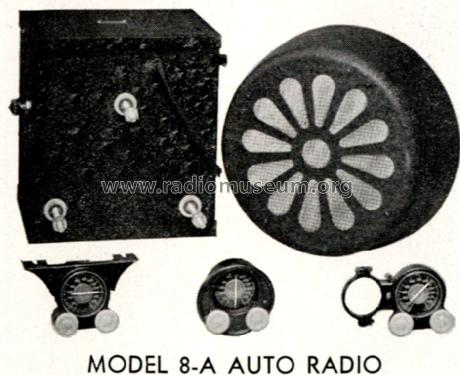

8-A ; Gilfillan Bros.Inc.; (ID = 1600582) Car Radio
Gilfillan Bros.Inc.;: 8-A [Car Radio] ID = 1600582 933x759
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8-A, Gilfillan Bros.Inc.; Los Angeles (CA):
Scanned from the Gilfillan Folder for 1936.
Country:  United States of America (USA)
Manufacturer / Brand:  Gilfillan Bros.Inc.; Los Angeles (CA)
Year: 1935/1936 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: 77 85 84 78 78 41 41 76
Main principle Superhet with RF-stage
Wave bands Broadcast only (MW).
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Model: 8-A - Gilfillan Bros.Inc.; Los
Material Metal case
Shape Chassis only or for «building in»
Literature/Schematics (3) The Gilfillan Folder for 1936.

Model page created by Ernst Erb. See "Data change" for further contributors.
