• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120138

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SG7 6SA7 6SK7 6SQ7 6SQ7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

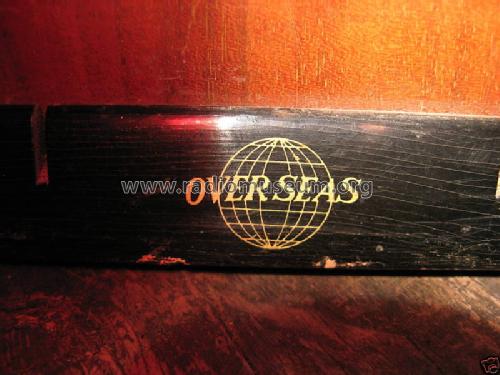

• Model: Over Seas 86U - Gilfillan Bros.Inc.; Los

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 14 x 17 x 9 inch / 356 x 432 x 229 mm

• Notes
• SW 6 - 18 MHz.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 26, Date 10/47, Folder 4716-16)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
