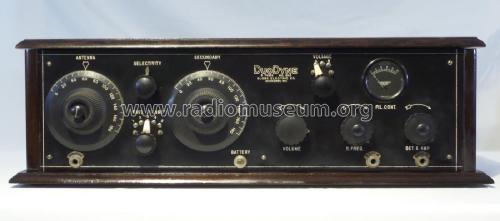

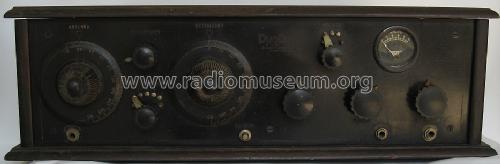

For model Duodyne 815 new, Globe Electric Co.; Milwaukee, Wisconsin (Duodyne)

Country:  United States of America (USA)
Manufacturer / Brand:  Globe Electric Co.; Milwaukee, Wisconsin (Duodyne)
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle TRF without regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Duodyne 815 [new] - Globe Electric Co.; Milwaukee,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 23.25 x 7.25 x 8.625 inch / 591 x 184 x 219 mm
Notes

Three dials (primary tuning control knobs)

Price in first year of sale 110.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932


All listed radios etc. from Globe Electric Co.; Milwaukee, Wisconsin (Duodyne)
Here you find 34 models, 20 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
