DuoDyne 900S

DuoDyne 900S; Globe Electric Co.; (ID = 1457648) Radio
DuoDyne 900S; Globe Electric Co.; (ID = 1457467) Radio DuoDyne 900S; Globe Electric Co.; (ID = 1457469) Radio
DuoDyne 900S; Globe Electric Co.; (ID = 1457470) Radio DuoDyne 900S; Globe Electric Co.; (ID = 1457473) Radio
DuoDyne 900S; Globe Electric Co.; (ID = 1457476) Radio
Use red slider bar for more.
DuoDyne 900S; Globe Electric Co.; (ID = 1457467) Radio
Globe Electric Co.;: DuoDyne 900S [Radio] ID = 1457467 933x552
Select picture or schematic to display from thumbnails on the right and click for download.
For model DuoDyne 900S, Globe Electric Co.; Milwaukee, Wisconsin (Duodyne):
Picture of the front of the Globe DuoDyne Model 900S.

Country:  United States of America (USA)
Manufacturer / Brand:  Globe Electric Co.; Milwaukee, Wisconsin (Duodyne)
Year: 1926 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: DuoDyne 900S - Globe Electric Co.; Milwaukee,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 21.6 x 7 x 7.5 inch / 549 x 178 x 191 mm
Notes

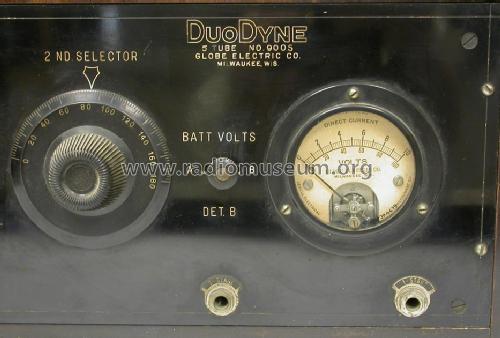

The Globe DuoDyne Model 900S has a more utilitarian, less ornate case than the Model 900 but offers slightly enhanced electronics.  It allows for the interception of the audio signal at either the fourth or fifth tube in the signal string, for either headset or speaker signal, respectively.  Simple three-knob tuning, with dial markings 0-180.  All three battery voltages can be momentarily monitored on the voltmeter.

Net weight (2.2 lb = 1 kg) 14.2 lb (14 lb 3.2 oz) / 6.447 kg

Model page created by Hank Kaczmarski. See "Data change" for further contributors.
