• Year
  • 1942 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 297190

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Bakelite case
  • from Radiomuseum.org

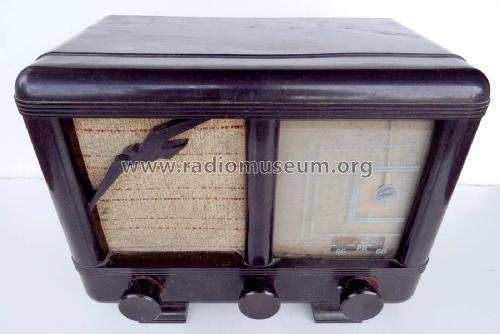

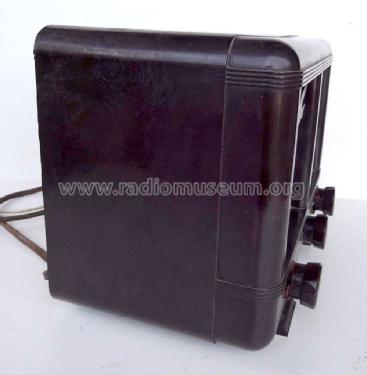

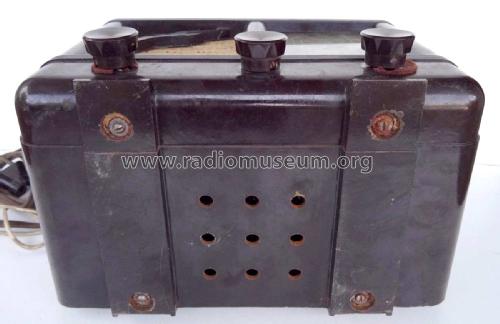

  • Model: Cricket 74 - GMR G.M.R., Georg, Montastier
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 250 x 185 x 145 mm / 9.8 x 7.3 x 5.7 inch
  • Notes
  • Voir aussi modèle similaire Cricket avec cadran et châssis légèrement différents.

    Le jeu de lampes n'est pas certain (EBL1 ou CBL6).

  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
