• Country
• France

• Manufacturer / Brand
• Gody, Abel; Amboise (Indre-et-Loire)

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215853

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 200; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 517 [alternatif] - Gody, Abel; Amboise Indre-et-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 280 x 245 mm / 18.9 x 11 x 9.6 inch

• Notes

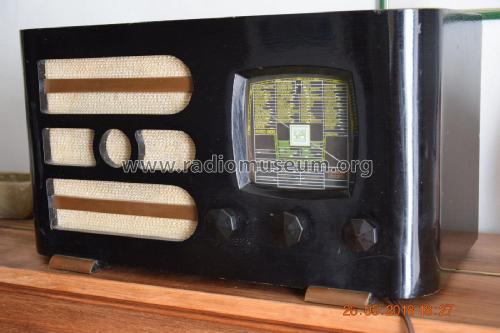

• Ébénisterie laquée noir.

  Supplément pour 25 périodes, 50 Fr.

• Price in first year of sale
• 995.00 FRF

• Mentioned in
• -- Original prospect or advert (La Série 1938, Tarif 14 Mai 1937)
