AM/FM Stereo Radio CD Cassette Recorder CD-323A

AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508770) Radio AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508812) Radio
AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508771) Radio AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508778) Radio
AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508772) Radio AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508773) Radio
AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508774) Radio AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508775) Radio
AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508776) Radio AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508777) Radio
Use red slider bar for more.

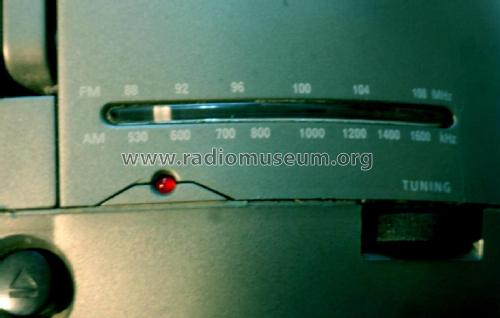

AM/FM Stereo Radio CD Cassette Recorder CD-323A; Gold Star Co., Ltd., (ID = 2508770) Radio
Gold Star Co., Ltd.,: AM/FM Stereo Radio CD Cassette Recorder CD-323A [Radio] ID = 2508770 1400x843
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Radio CD Cassette Recorder CD-323A, Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

Country:  South Korea
Manufacturer / Brand:  Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul
Year: 1998 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Other Combination - see Notes
Power type and voltage Line / Batteries (any type) / 230 / R14: 6 x 1.5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AM/FM Stereo Radio CD Cassette Recorder CD-323A - Gold Star Co., Ltd., Goldstar,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 338 x 178 x 230 mm / 13.3 x 7 x 9.1 inch
Notes

LG CD-323A is an AM/FM Stereo Radio with CD Player and Cassette Recorder.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul
Here you find 142 models, 112 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
