Electronic Clock Radio RK-313

Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819185) Radio Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819187) Radio
Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819200) Radio Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819210) Radio

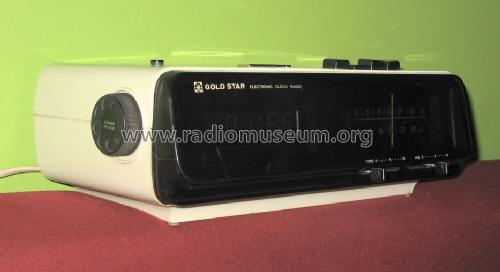

Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819192) Radio Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819193) Radio
Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819195) Radio Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819211) Radio
Use red slider bar for more.
Electronic Clock Radio RK-313; Gold Star Co., Ltd., (ID = 819185) Radio
Gold Star Co., Ltd.,: Electronic Clock Radio RK-313 [Radio] ID = 819185 933x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Clock Radio RK-313, Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

Country:  South Korea
Manufacturer / Brand:  Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul
Year: 1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Electronic Clock Radio RK-313 - Gold Star Co., Ltd., Goldstar,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 330 x 100 x 163 mm / 13 x 3.9 x 6.4 inch
Notes

Equipped with clock IC EA5316, (dated 7621), manufacturer: Electronic Arrays, Inc; California

Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
