FM/MW/LW/SW Stereo Cassette Recorder TSR-640

Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

  • Year
  • 1984 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 219020

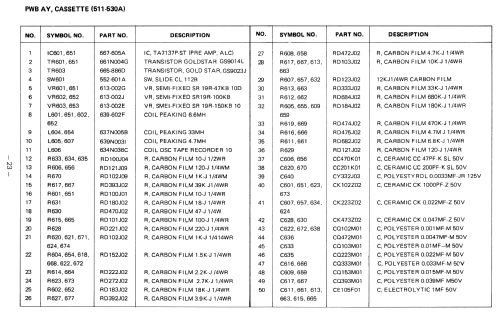

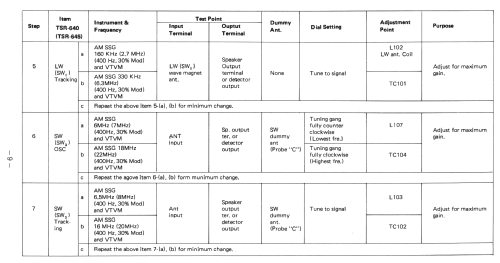

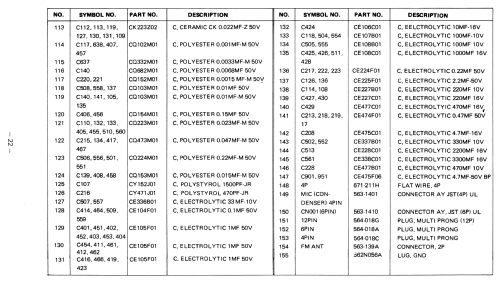

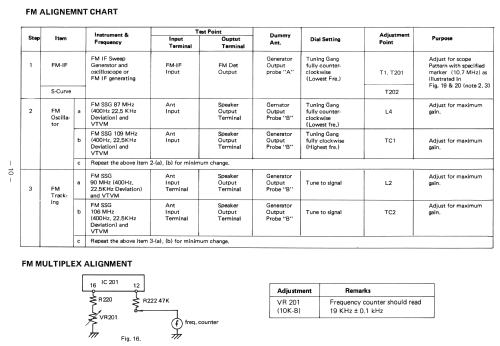

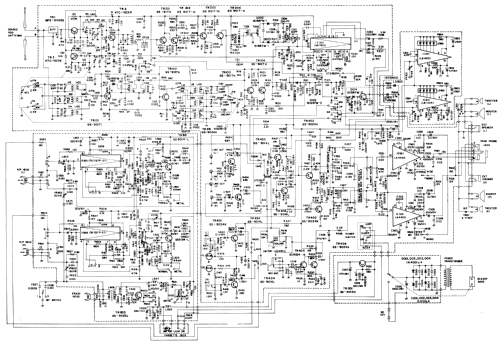

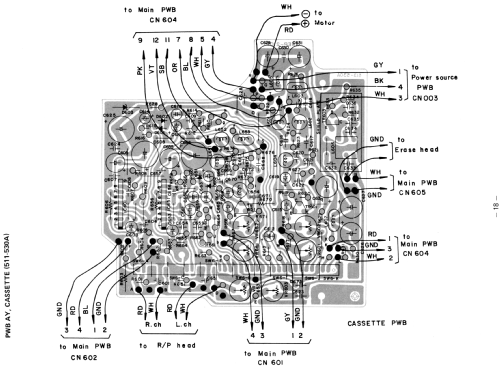

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 12, 8 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM/MW/LW/SW Stereo Cassette Recorder TSR-640 - Gold Star Co., Ltd., Goldstar,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Goldstar FM/MW/LW/SW Stereo Cassette Recorder TSR-640;
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
