For model 3155, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6AU6 12AT7 6BJ6 6BJ6 6AU6 6AL5 6AM8 6AQ5 6X4
Main principle Superhet with RF-stage; ZF/IF 10700 kHz; 3 AF stage(s)
Tuned circuits 11 AM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 3155 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, with any shape - general.
Notes The Gonset Model 3155 is an AC Operated 9 Tube FM Receiver.

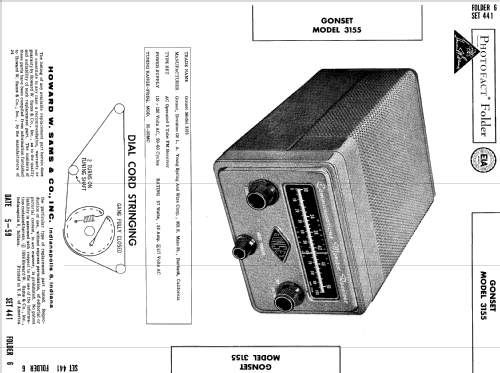

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 6)

Model page created by Egon Penker. See "Data change" for further contributors.
