Citizens Communicator G12 (3329)

Citizens Communicator G12 ; Gonset Inc., (ID = 528591) Citizen

Citizens Communicator G12 ; Gonset Inc., (ID = 528592) Citizen

Citizens Communicator G12 ; Gonset Inc., (ID = 528593) Citizen
Citizens Communicator G12 ; Gonset Inc., (ID = 2076829) Citizen Citizens Communicator G12 ; Gonset Inc., (ID = 2076830) Citizen
Citizens Communicator G12 ; Gonset Inc., (ID = 2076831) Citizen Citizens Communicator G12 ; Gonset Inc., (ID = 2076832) Citizen
Citizens Communicator G12 ; Gonset Inc., (ID = 2076833) Citizen
Use red slider bar for more.
Citizens Communicator G12 ; Gonset Inc., (ID = 2076829) Citizen
Gonset Inc.,: Citizens Communicator G12 [Citizen] ID = 2076829 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Citizens Communicator G12 (3329), Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
eBay-Artikelnummer:19203568012, von daho337

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1961 ? Category: Citizen Band Equipment
Valves / Tubes 8: 6AU6 6U8A 6BJ6 6BA6 6AL5 6AV6 6BQ5 6CX8
Main principle Superheterodyne (common); ZF/IF 1650 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Line / Batteries (any type) / 110-120 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: Citizens Communicator G12 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Notes There is also a model for AC and 12V supply: G-12 (3316). Any 4 of CB Channels 1 thru 22.

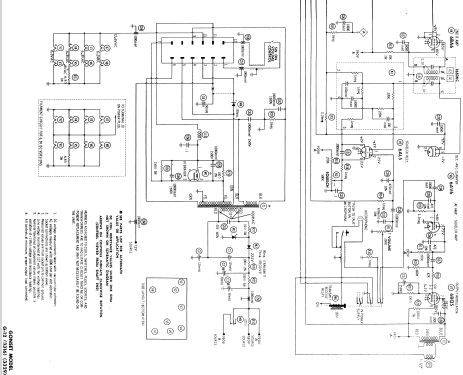

Circuit diagram reference Photofact Folder, Howard W. SAMS

Model page created by Heribert Jung. See "Data change" for further contributors.
