Communicator IV (4) (6-Meter) 3342

Communicator IV 3342; Gonset Inc., (ID = 2083297) Amat TRX Communicator IV 3342; Gonset Inc., (ID = 2083298) Amat TRX
Use red slider bar for more.
Communicator IV 3342; Gonset Inc., (ID = 2083297) Amat TRX
Gonset Inc.,: Communicator IV 3342 [Amat TRX] ID = 2083297 1400x775
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communicator IV (4) (6-Meter) 3342, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):

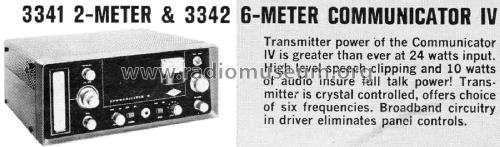

QST September 1968 page 5

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1961 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Valves / Tubes 15: 12BY7 12BY7 12BY7 6ER5 6ER5 6J6 6C4 6AV6 6AV6 6BE6 6AL5 0B2 6360 6BQ5 6BQ5
Main principle Superhet, double/triple conversion
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / 12 VDC or 115 AC Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Communicator IV 3342 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.5 x 5 x 11 inch / 318 x 127 x 279 mm

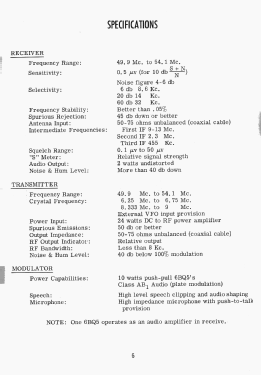

Notes

The Gonset 3342 Communicator IV is a crystal controlled 6-meter AM transceiver with 24 watts input. It has slots for six crystals.  The receiver section is a triple conversion superhetrodyne.

Net weight (2.2 lb = 1 kg) 21.8 lb (21 lb 12.8 oz) / 9.897 kg
Price in first year of sale 349.50 USD
Mentioned in QST (September 1968 page 5)
Literature/Schematics (1) Tube Type Transmitters (2nd edition page 95)

Model page created by Wayne Childress. See "Data change" for further contributors.
