G 903 A

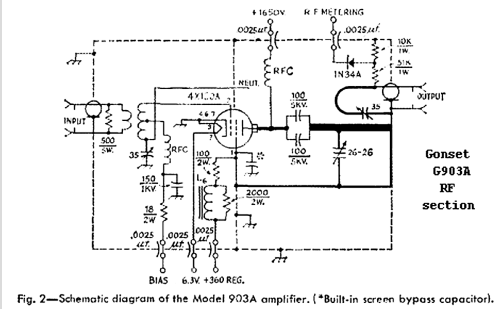

G 903 A ; Gonset Inc., (ID = 515388) RF-Ampl.
G 903 A ; Gonset Inc., (ID = 603783) RF-Ampl.
Use red slider bar for more.
G 903 A ; Gonset Inc., (ID = 603783) RF-Ampl.
Gonset Inc.,: G 903 A [RF-Ampl.] ID = 603783 933x690
Select picture or schematic to display from thumbnails on the right and click for download.
For model G 903 A, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
Quelle: Bauer-Katalog, 1968.

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1964–1968 ?? Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 1: 4X150A or 4X250B or 7580
Main principle Radio Frequency Amplification only
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: G 903 A - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 320 x 215 x 440 mm / 12.6 x 8.5 x 17.3 inch
Notes 2 m PA for AM, CW, FM, SSB.
Input power: max 500 W
Output power: 280 W CW , 200 W SSB
RF drive input .....5 W.
Laut Bauer Katalog 1968 Preis in Deutschland 1256 DM.
Net weight (2.2 lb = 1 kg) 27.2 kg / 59 lb 14.6 oz (59.912 lb)
Price in first year of sale 299.00 $
External source of data Katalog H.Bauer, Bamberg, 1968
Mentioned in ARRL Handbook 1965
Literature/Schematics (1) Katalog H.Bauer, Bamberg, 1968

Model page created by Götz Linss. See "Data change" for further contributors.
