GSB-201 3340 Original

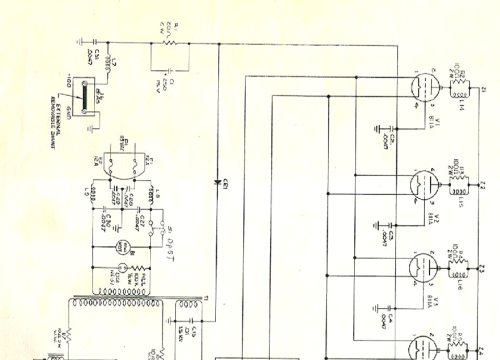

GSB-201 3340; Gonset Inc., (ID = 1810488) RF-Ampl.

GSB-201 3340; Gonset Inc., (ID = 1810489) RF-Ampl.
GSB-201 3340; Gonset Inc., (ID = 1810487) RF-Ampl.
Use red slider bar for more.
GSB-201 3340; Gonset Inc., (ID = 1810487) RF-Ampl.
Gonset Inc.,: GSB-201 3340 [RF-Ampl.] ID = 1810487 1400x975
Select picture or schematic to display from thumbnails on the right and click for download.
For model GSB-201 3340 Original, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
Gonset Owner's Manual

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1960 ?? Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 4: 811A 811A 811A 811A
Main principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: GSB-201 3340 [Original] - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12.625 x 8.5 x 17.3125 inch / 321 x 216 x 440 mm
Notes

Gonset GSB-201 (3340) Linear Amplifier covers the 80, 75, 40, 20, 15, 10 amateur bands with 1500 watts PEP input on SSB and 400 watts DC input on AM.  It provides approximately 10 db power gain in SSB, AM, RTTY and CW.





Net weight (2.2 lb = 1 kg) 81 lb (81 lb 0 oz) / 36.774 kg
Mentioned in QST

Model page created by Patrick Jankowiak. See "Data change" for further contributors.
