Sidewinder GS-2B

Sidewinder GS-2B; Gonset Inc., (ID = 211262) Amat TRX
Use red slider bar for more.
Sidewinder GS-2B; Gonset Inc., (ID = 211262) Amat TRX

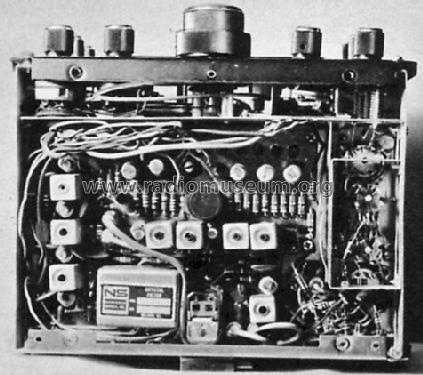

Gonset Inc.,: Sidewinder GS-2B [Amat TRX] ID = 211262 477x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sidewinder GS-2B, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
FS

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1968 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Valves / Tubes 3: 6360 6EA8 12BY7
Semiconductors (the count is only for transistors) 21:
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 220 / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Sidewinder GS-2B - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 230 x 130 x 180 mm / 9.1 x 5.1 x 7.1 inch
Notes 144 - 148 MHz HAM Band Transceiver, CW/SSB/AM. Needs additional power unit for main or car voltage with built-in speaker.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Mentioned in Funkschau (1968, Heft 14)

Model page created by a member from A. See "Data change" for further contributors.
