HF-Transformer F 31

HF-Transformer F 31; Görler, J. K.; (ID = 1373123) mod-past25
HF-Transformer F 31; Görler, J. K.; (ID = 1372781) mod-past25 HF-Transformer F 31; Görler, J. K.; (ID = 1372782) mod-past25
HF-Transformer F 31; Görler, J. K.; (ID = 1372783) mod-past25 HF-Transformer F 31; Görler, J. K.; (ID = 1372784) mod-past25
HF-Transformer F 31; Görler, J. K.; (ID = 1372785) mod-past25
Use red slider bar for more.
HF-Transformer F 31; Görler, J. K.; (ID = 1372781) mod-past25
Görler, J. K.;: HF-Transformer F 31 [mod-past25] ID = 1372781 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF-Transformer F 31, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1933 Category: Radio module post 1925 (not a part, not a key)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: HF-Transformer F 31 - Görler, J. K.; Berlin
Material Metal case
Dimensions (WHD) 60 x 65 x 63 mm / 2.4 x 2.6 x 2.5 inch
Notes

Ferrocart-Einkreis-Spulensatz mit Umschalter  K, M, L, in Blech gekapselt.
Bezeichnung der Anschlussklemmen : A1 , A2 , E sowie K , R , G.

Ausführung ohne Umschalter : F41.

Price in first year of sale 11.40 RM

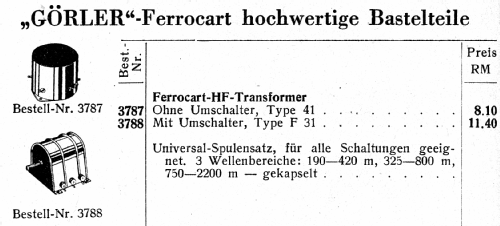

Mentioned in Katalog Radio Schnorr, 1934
Literature/Schematics (1) Radio Holzinger Katalog 1932/33

Model page created by Norbert Haselbach. See "Data change" for further contributors.
