• Country
• Germany

• Manufacturer / Brand
• Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164004

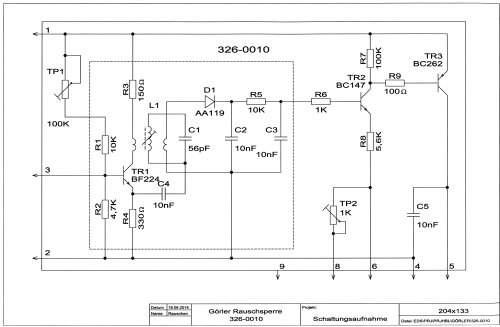

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• SF8636 AF124 SF8636 BC109 µA703 µA703 µA703 µA703 BF224 BC147 BC147 BC157 BC107 BC147 BC147 BA102 AA112 AA119 AA119 AA119 AA112 AA112 AA119 AA119 AA119 AA119 B80C800

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Tuned circuits
• 14 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

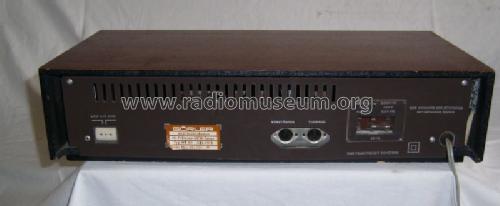

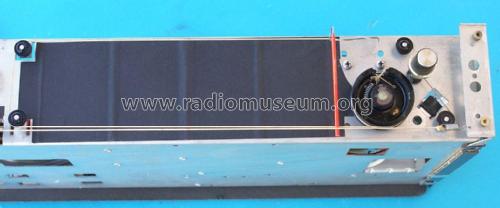

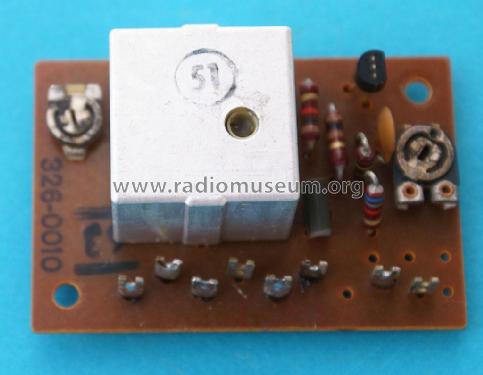

• Model: Hi-Fi Stereo-UKW-Tuner WT60 - Görler, J. K.; Berlin

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 110 x 250 mm / 17.7 x 4.3 x 9.8 inch

• Notes

• UKW-Bereich: 88 - 108 MHz. UKW-Mischteil mit 4-fach Drehko-Abstimmung.
  Separate DIN-Ausgänge für Verstärker und Tonbandgerät.

• Source of data
• -- Schematic

• Author
• Model page created by Eberhard Franzke. See "Data change" for further contributors.
