Kurzwellen-Wickelkörper F256

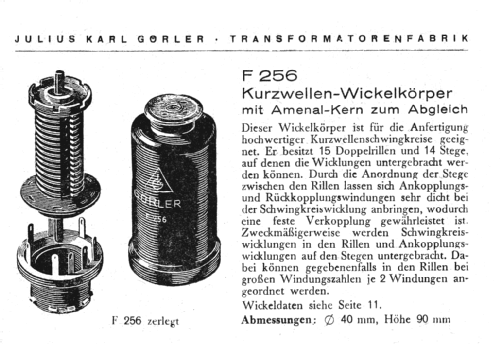

Kurzwellen-Wickelkörper F256; Görler, J. K.; (ID = 1244225) Radio part

Kurzwellen-Wickelkörper F256; Görler, J. K.; (ID = 1244226) Radio part

Kurzwellen-Wickelkörper F256; Görler, J. K.; (ID = 1792468) Radio part
Kurzwellen-Wickelkörper F256; Görler, J. K.; (ID = 1344734) Radio part
Use red slider bar for more.
Kurzwellen-Wickelkörper F256; Görler, J. K.; (ID = 1344734) Radio part
Görler, J. K.;: Kurzwellen-Wickelkörper F256 [Radio part] ID = 1344734 933x779
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurzwellen-Wickelkörper F256, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1938 ? Category: Radio part (not a module)
Wave bands Short Wave (SW only)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Kurzwellen-Wickelkörper F256 - Görler, J. K.; Berlin
Material Special material, described in the notes.
Shape Chassis only or for «building in»
Dimensions (WHD) 40 x 90 x 40 mm / 1.6 x 3.5 x 1.6 inch
Notes

Wickelkörper für Kurzwellenschwingkreise mit Abdeckhaube und Stecksockel (8-polig Außenkontakt). Abgleichkern aus Amenal.

Net weight (2.2 lb = 1 kg) 0.075 kg / 0 lb 2.6 oz (0.165 lb)
Price in first year of sale 3.80 RM
Source of data - - Manufacturers Literature
Mentioned in Görler Liste H1, 1942
Literature/Schematics (1) Görler Liste 395a, 1939
