Netztransformator Ne75

Netztransformator Ne75; Görler, J. K.; (ID = 794914) Radio part

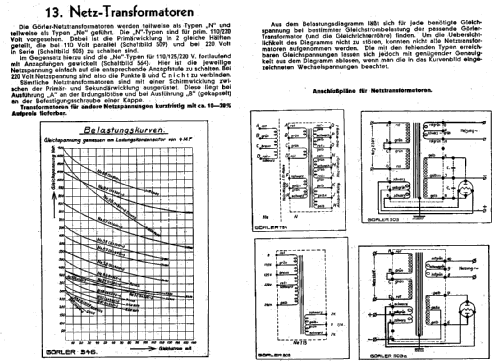

Netztransformator Ne75; Görler, J. K.; (ID = 794927) Radio part

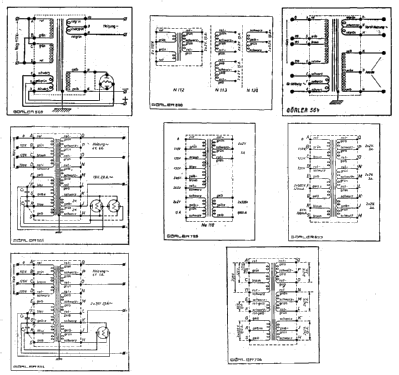

Netztransformator Ne75; Görler, J. K.; (ID = 794928) Radio part
Netztransformator Ne75; Görler, J. K.; (ID = 537904) Radio part
Use red slider bar for more.
Netztransformator Ne75; Görler, J. K.; (ID = 537904) Radio part
Görler, J. K.;: Netztransformator Ne75 [Radio part] ID = 537904 697x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netztransformator Ne75, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):
Anschlussklemmen: A-D = 220 V prim. H und J = 500 V J und K = 500 V M,N,O = 4 V / 6A mit Mittelanzapfung E,F,G = 4 V / 1,1 A für GL Röhre

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1935 Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Netztransformator Ne75 - Görler, J. K.; Berlin
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 120 x 115 x 85 mm / 4.7 x 4.5 x 3.3 inch
Notes Sekundär-Spannungen: 4 V/1,1 A; 4 V/6 A (jeweils mit Mittelanzapfung),
2× 500 V/60 mA.
Ausführung Ne75A = offen mit Litzen; Ne75B = gekapselt mit Klemmleiste.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Price in first year of sale 21.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936

Model page created by Wolfram Zylka. See "Data change" for further contributors.
