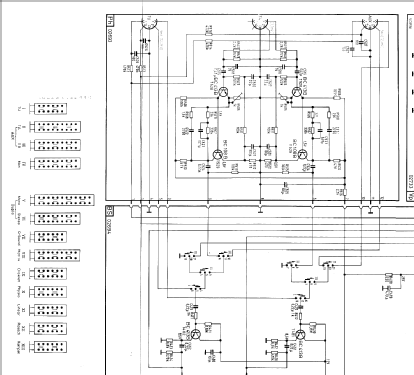

QV920; Görler, J. K.; (ID = 443436) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443437) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443438) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443439) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443440) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443441) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443442) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443443) Ampl/Mixer

QV920; Görler, J. K.; (ID = 443444) Ampl/Mixer
QV920; Görler, J. K.; (ID = 381248) Ampl/Mixer
Use red slider bar for more.
QV920; Görler, J. K.; (ID = 381248) Ampl/Mixer
Görler, J. K.;: QV920 [Ampl/Mixer] ID = 381248 550x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model QV920, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):
Großer Katalog Gebr.Weiler 1973/74

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1973–1976 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 55:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: QV920 - Görler, J. K.; Berlin
Material Wooden case
Dimensions (WHD) 525 x 119 x 288 mm / 20.7 x 4.7 x 11.3 inch
Notes ICs: 1.
HiFi-Quadro-Verstärker mit Decoder für SQ-Schallplattenwiedergabe. NF-Ausgangsleistung: 4× 25 W (Sinus) bzw. 2× 40 W (Sinus).
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1974/1975 (und 1975/76)
