SG531

SG531; Görler, J. K.; (ID = 1953867) Radio

SG531; Görler, J. K.; (ID = 1953868) Radio

SG531; Görler, J. K.; (ID = 1953869) Radio

SG531; Görler, J. K.; (ID = 1953870) Radio

SG531; Görler, J. K.; (ID = 1953871) Radio

SG531; Görler, J. K.; (ID = 1953872) Radio

SG531; Görler, J. K.; (ID = 1953873) Radio

SG531; Görler, J. K.; (ID = 1953874) Radio

SG531; Görler, J. K.; (ID = 1953875) Radio

SG531; Görler, J. K.; (ID = 1953876) Radio
SG531; Görler, J. K.; (ID = 141643) Radio SG531; Görler, J. K.; (ID = 141731) Radio
Use red slider bar for more.
SG531; Görler, J. K.; (ID = 141643) Radio
Görler, J. K.;: SG531 [Radio] ID = 141643 933x453

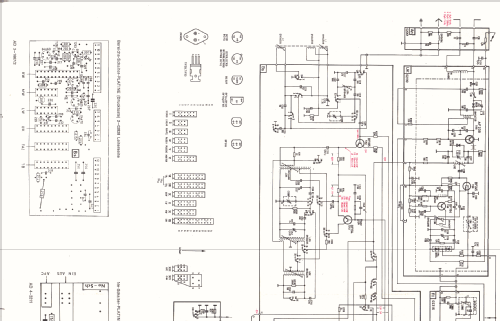

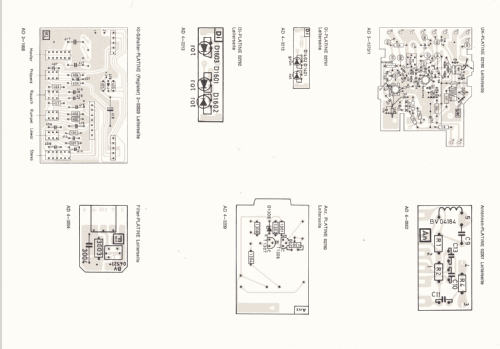

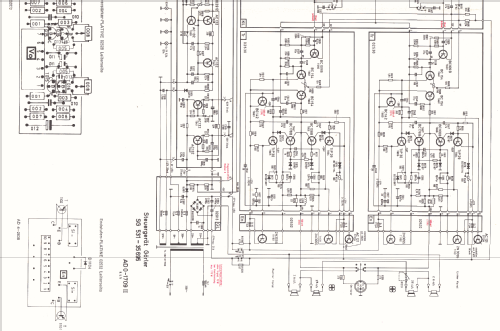

Select picture or schematic to display from thumbnails on the right and click for download.
For model SG531, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):
JKG-Görler 'HIFI-Receiver SG 531', UKML, Flutlichtskala, 2x 30/ 50W, Quadroklang, Ausführung schwarz

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1974–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 52:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: SG531 - Görler, J. K.; Berlin
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 640 x 120 x 300 mm / 25.2 x 4.7 x 11.8 inch
Notes ICs: 1.
HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 30 W (Sinus); Orientierungshilfe bei Sendereinstellung und Senderspeicherung mit Leuchtdioden. Gehäuse: Nussbaum, matt oder Schleiflack, weiss.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
External source of data Erb
Source of data Katalog RFP 1974 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1975/1976


All listed radios etc. from Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Here you find 127 models, 101 with images and 113 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
