• Year
  • 1932 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 80982

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Tuned circuits
  • 1 AM circuit(s)
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org

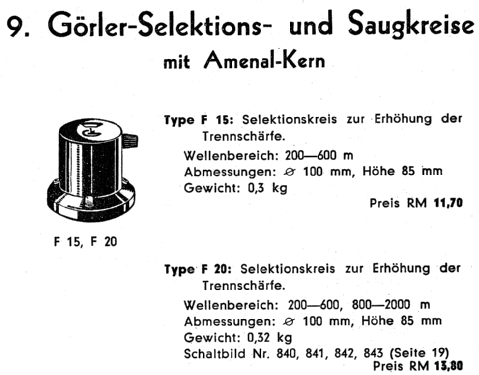

  • Model: Sperr- und Selektionskreis F20 - Görler, J. K.; Berlin
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Robert Latzel. See "Data change" for further contributors.
