Stereo-Decoder 327-0001

Stereo-Decoder 327-0001; Görler, J. K.; (ID = 1714165) mod-past25

Stereo-Decoder 327-0001; Görler, J. K.; (ID = 1714166) mod-past25

Stereo-Decoder 327-0001; Görler, J. K.; (ID = 1714167) mod-past25
Stereo-Decoder 327-0001; Görler, J. K.; (ID = 1713434) mod-past25
Use red slider bar for more.
Stereo-Decoder 327-0001; Görler, J. K.; (ID = 1713434) mod-past25
Görler, J. K.;: Stereo-Decoder 327-0001 [mod-past25] ID = 1713434 933x687
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Decoder 327-0001, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):

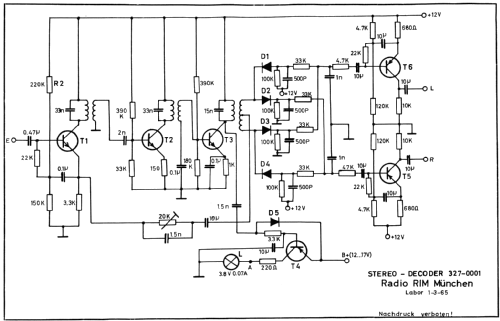

Das Bild entstammt einem RIM-Datenblatt.

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1965–1967 ? Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 6: BC173 BC173 BC173 AC125 or. AC122 AC125 or. AC122 AC128
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo-Decoder 327-0001 - Görler, J. K.; Berlin
Material Printed Circuit Board
Shape Chassis only or for «building in»
Dimensions (WHD) 120 x 75 x 45 mm / 4.7 x 3 x 1.8 inch
Notes

Stereodecoder mit drei 19 kHz Verstärkerstufen, NF-Ausgangsverstärker und Transistorausgang für Stereokontrollanzeige mit Glühlämpchen.

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funk-Technik (FT) (7/1965, S. 245 - 247 / Beschreibung, Daten, Schema)
