Stereo-Decoder 327-0032

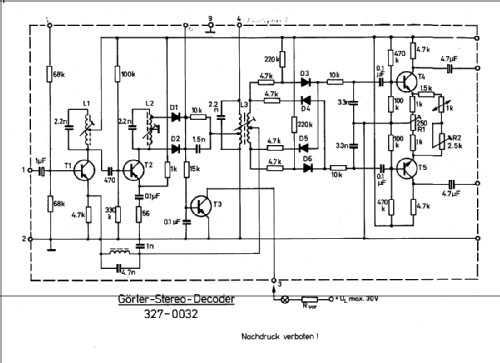

Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1177595) mod-past25

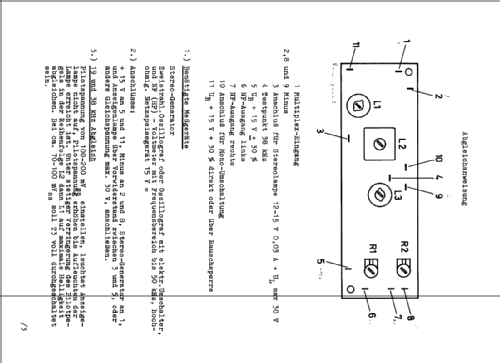

Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1177596) mod-past25

Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1177597) mod-past25

Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1177598) mod-past25

Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1177599) mod-past25
Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1298414) mod-past25
Use red slider bar for more.
Stereo-Decoder 327-0032; Görler, J. K.; (ID = 1298414) mod-past25
Görler, J. K.;: Stereo-Decoder 327-0032 [mod-past25] ID = 1298414 768x318
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Decoder 327-0032, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1968 ? Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 5:
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 15 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo-Decoder 327-0032 - Görler, J. K.; Berlin
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 139 x 33 x 45 mm / 5.5 x 1.3 x 1.8 inch
Notes Görler Stereo-Decoder 327-0032;
Eingangsspannung max. 2,5 Vss
Eingangswiderstand ca. 30 kΩ
Ausgangswiderstand 4,7 kΩ
Deemphasis 50 µs
Übersprechdämpfung > 40 dB bei 1 kHz
Klirrfaktor Kges. 0,5% Mono, 0,6% Stereo.
Stereoanzeige: Über Schalttransistor und Glühlampe.
Weitere Halbleiter: 6 Dioden.
Source of data -- Original prospect or advert

Model page created by Manfred Rauschen. See "Data change" for further contributors.
