For model Studio MC-615, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):
Bild aus Görler Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 24 W (40 W max.)
from Radiomuseum.org Model: Studio MC-615 - Görler, J. K.; Berlin
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Notes

Studio MC 615
mit Plattenspieler PE 3044 und Kassetten - Recorder. NF Funktion Duplo, Quatrosound, Mono, TA I Radio, TA I und Radio  = TB I, TA 1 und Radio nicht gedrückt = TA II / TB II

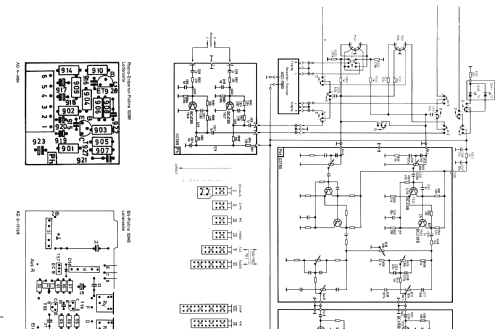

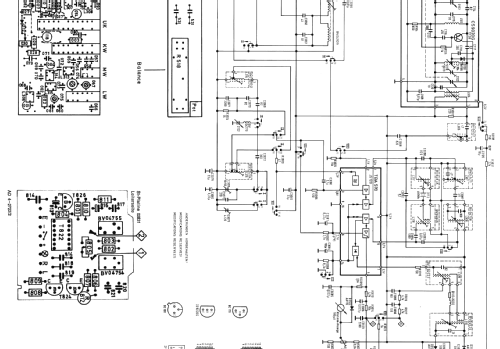

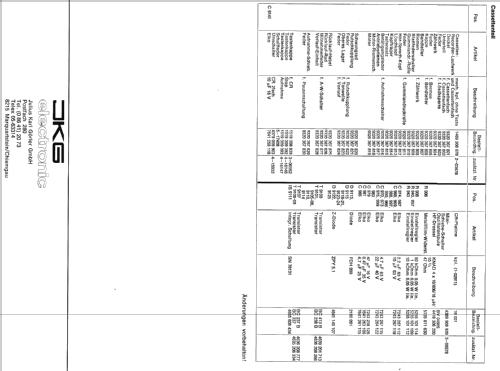

Literature/Schematics (1) Original Görler Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
