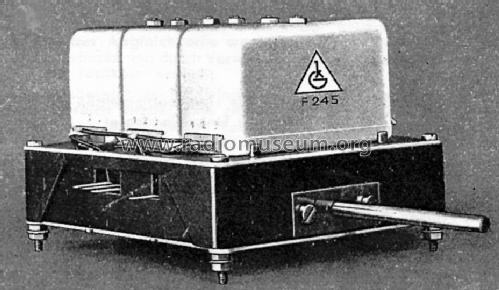

Super-Spulensatz F245

Super-Spulensatz F245; Görler, J. K.; (ID = 796139) mod-past25
Super-Spulensatz F245; Görler, J. K.; (ID = 1182378) mod-past25 Super-Spulensatz F245; Görler, J. K.; (ID = 796140) mod-past25
Super-Spulensatz F245; Görler, J. K.; (ID = 1182379) mod-past25 Super-Spulensatz F245; Görler, J. K.; (ID = 1182380) mod-past25
Super-Spulensatz F245; Görler, J. K.; (ID = 1182382) mod-past25
Use red slider bar for more.
Super-Spulensatz F245; Görler, J. K.; (ID = 1182378) mod-past25
Görler, J. K.;: Super-Spulensatz F245 [mod-past25] ID = 1182378 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Spulensatz F245, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1941 ? Category: Radio module post 1925 (not a part, not a key)
Main principle ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Super-Spulensatz F245 - Görler, J. K.; Berlin
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 93 x 70 x 116 mm / 3.7 x 2.8 x 4.6 inch
Notes Eingangskreis und Oszillator (Spulensatz) einschließlich Schaltern für AM-Super, vorabgeglichen für Drehko 500 pF. Topfkörper F272 mit HF-Litze in Alu-Bechern. Schaltfolge K-M-L-TA. Auch Vorstufe ankoppelbar.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 30.00 RM
Mentioned in Görler Liste H1, Nov. 1942

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
