Super-Spulensatz F298

Super-Spulensatz F298; Görler, J. K.; (ID = 795946) mod-past25

Super-Spulensatz F298; Görler, J. K.; (ID = 1244222) mod-past25
Super-Spulensatz F298; Görler, J. K.; (ID = 1346785) mod-past25 Super-Spulensatz F298; Görler, J. K.; (ID = 795943) mod-past25

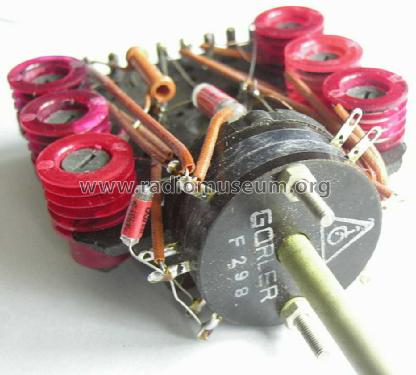

Super-Spulensatz F298; Görler, J. K.; (ID = 1346783) mod-past25 Super-Spulensatz F298; Görler, J. K.; (ID = 1346786) mod-past25
Super-Spulensatz F298; Görler, J. K.; (ID = 1346788) mod-past25
Use red slider bar for more.
Super-Spulensatz F298; Görler, J. K.; (ID = 1346785) mod-past25
Görler, J. K.;: Super-Spulensatz F298 [mod-past25] ID = 1346785 933x752
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Spulensatz F298, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1947 Category: Radio module post 1925 (not a part, not a key)
Main principle ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Super-Spulensatz F298 - Görler, J. K.; Berlin
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 75 x 36 x 80 mm / 3 x 1.4 x 3.1 inch
Notes Eingangskreis und Oszillator (Spulensatz) für AM-Super, vorabgeglichen für Drehko 500 pF. Kammerspulenkörper z.T. mit HF-Litze, 4 Hescho-Trimmer. Trägermaterial Amenit. Schaltfolge K-M-L-TA.
Siehe auch Spulensatz SU1 von HFW-Meuselwitz. Entweder Parallelproduktion oder gleiches Produkt über anderes Vertriebssystem.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Price in first year of sale 24.00 RM
Mentioned in Görler Liste H4, Aug. 1947

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
