• Country
• Germany

• Manufacturer / Brand
• Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

• Year
• 1964

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 257285

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AF124 AF124 AF124 AF124 AA112 AA112 AA112

• Main principle
• Radio Frequency Amplification only; ZF/IF 10700 kHz

• Tuned circuits
• 8 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Printed Circuit Board

• from Radiomuseum.org

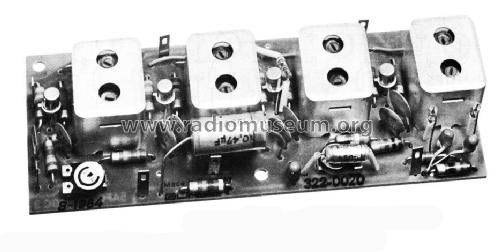

• Model: ZF-Verstärker 322-0020 - Görler, J. K.; Berlin

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 130 x 50 x 23 mm / 5.1 x 2 x 0.9 inch

• Notes

• 4-stufiger Transistor-FM-ZF-Verstärker mit Ratio-Detektor.

  Bandbreite 600 kHz, für HF-Stereophonie geeignet.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
