Konstanter T4 K25 B3

Konstanter T4 K25 B3; Gossen, P., & Co. KG (ID = 2072819) Equipment Konstanter T4 K25 B3; Gossen, P., & Co. KG (ID = 2072820) Equipment
Konstanter T4 K25 B3; Gossen, P., & Co. KG (ID = 2072821) Equipment
Use red slider bar for more.

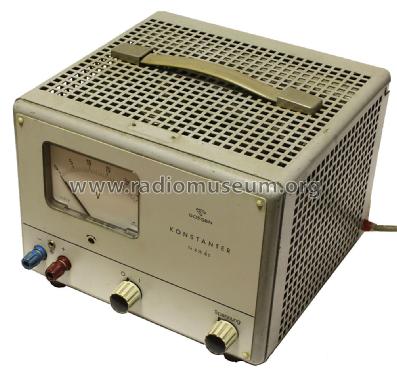

Konstanter T4 K25 B3; Gossen, P., & Co. KG (ID = 2072819) Equipment
Gossen, P., & Co. KG: Konstanter T4 K25 B3 [Equipment] ID = 2072819 1400x1321
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konstanter T4 K25 B3, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:
Courtesy of Christoph Böbinger

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1970 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Konstanter T4 K25 B3 - Gossen, P., & Co. KG PGCD;
Material Metal case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 245 x 190 x 260 mm / 9.6 x 7.5 x 10.2 inch
Notes

0-25 V, 3 A

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)

Model page created by a member from D. See "Data change" for further contributors.
