Leistungstransistor-Tester

Leistungstransistor-Tester ; Gossen, P., & Co. KG (ID = 2514440) Equipment
Leistungstransistor-Tester ; Gossen, P., & Co. KG (ID = 2514439) Equipment
Use red slider bar for more.
Leistungstransistor-Tester ; Gossen, P., & Co. KG (ID = 2514439) Equipment

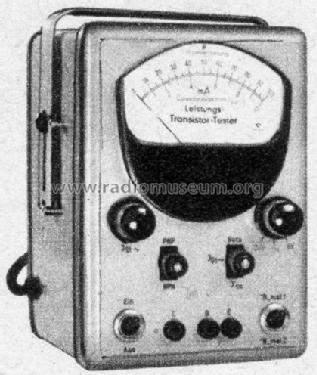

Gossen, P., & Co. KG: Leistungstransistor-Tester [Equipment] ID = 2514439 420x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leistungstransistor-Tester, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:
Funk-Technik 23/1958, S. 799

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1958 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Leistungstransistor-Tester - Gossen, P., & Co. KG PGCD;
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

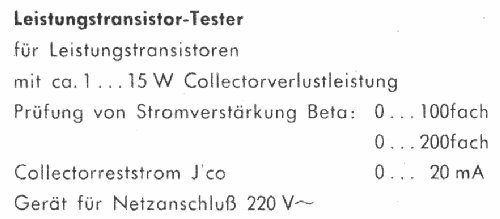

Für Leistungstransistoren mit ca. 1 ... 15 W Collectorverlustleistung.

Siehe auch Gossen Transistor-Tester 58 für Kleinleistungstransistoren.

Mentioned in Funk-Technik (FT) (23/1958, S. 799 / Werbeanzeige)

Model page created by Oswald Bettendorf. See "Data change" for further contributors.
