For model Pantagraph 2 226253, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:
ebay 324054332911, detektorking

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1968 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Pantagraph 2 226253 - Gossen, P., & Co. KG PGCD;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 100 x 129 x 270 mm / 3.9 x 5.1 x 10.6 inch
Notes

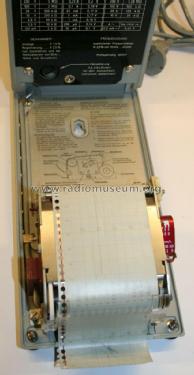

Gossen Pantagraph 2 ist ein Vielfachmessgerät für Gleich- und Wechselspannung und Gleichstrom, mit Schreib- bzw. Registriereinrichtung.

Innenwiderstand 20 kΩ/V DC, 5 kΩ/V AC

Model page created by Martin Steyer. See "Data change" for further contributors.
