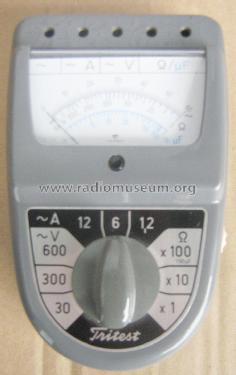

Tritest ; Gossen, P., & Co. KG (ID = 2532092) Equipment
Gossen, P., & Co. KG: Tritest [Equipment] ID = 2532092 931x1477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tritest, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1970 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tritest - Gossen, P., & Co. KG PGCD;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 88 x 48 x 140 mm / 3.5 x 1.9 x 5.5 inch
Notes Multimeter, Drehspulmesswerk mit Gleichrichter, Strombereiche mit Stromwandler.
Spannungen 30/300/600 VAC, eingeschränkt VDC
Strom: 1,2/6/12 AAC
Widerstände 5/50/500 kOhm
Kapazitäten 150 µF
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by a member from D. See "Data change" for further contributors.
