Universal-Ohmmeter 1938

Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1476857) Equipment Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1282009) Equipment
Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1476859) Equipment Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1595176) Equipment
Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1595177) Equipment Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1701524) Equipment
Use red slider bar for more.

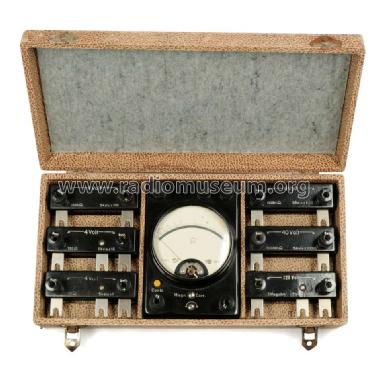

Universal-Ohmmeter 1938; Gossen, P., & Co. KG (ID = 1476857) Equipment
Gossen, P., & Co. KG: Universal-Ohmmeter 1938 [Equipment] ID = 1476857 933x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal-Ohmmeter 1938, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:
Gossen Universal-Ohmmeter

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1938 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 220 / 4 & 40 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal-Ohmmeter 1938 - Gossen, P., & Co. KG PGCD;
Material Bakelite case
Dimensions (WHD) 88 x 45 x 128 mm / 3.5 x 1.8 x 5 inch
Notes The Ohms range is selected by connecting an external reference resistor to the instrument. 6 different resistors for 10 Ohm to 1 MOhm are provided. The 0 Ohm full scale deflection depends on the external battery voltage and is adjusted by means of a variable magnetic shunt.
Net weight (2.2 lb = 1 kg) 0.440 kg / 0 lb 15.5 oz (0.969 lb)
Price in first year of sale 80.00 RM
Literature/Schematics (1) -- Original prospect or advert

Model page created by Johannes Philipp. See "Data change" for further contributors.
