Ariola

Ariola ; Unknown - CUSTOM (ID = 1958535) Radio Ariola ; Unknown - CUSTOM (ID = 1958537) Radio
Ariola ; Unknown - CUSTOM (ID = 1958540) Radio Ariola ; Unknown - CUSTOM (ID = 1958543) Radio
Ariola ; Unknown - CUSTOM (ID = 1958544) Radio Ariola ; Unknown - CUSTOM (ID = 1958545) Radio
Use red slider bar for more.
Ariola ; Unknown - CUSTOM (ID = 1958535) Radio

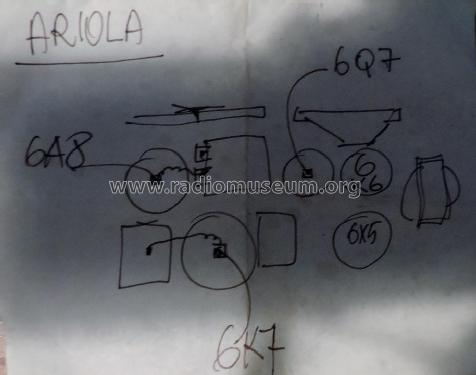

Unknown - CUSTOM: Ariola [Radio] ID = 1958535 933x693
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ariola, Unknown - CUSTOM BUILT: Italy

Country:  Italy
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Italy
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6A8G 6K7G 6Q7G 6K6G 6X5GT
Main principle Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Ariola - Unknown - CUSTOM BUILT: Italy
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Model page created by Ciro Guidi. See "Data change" for further contributors.



All listed radios etc. from Unknown - CUSTOM BUILT: Italy
Here you find 229 models, 220 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
