Pulse Generator PG58A
Gould Advance Ltd.; Hainault
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Gould Advance Ltd.; Hainault
- Year
- 1977 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 339571
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

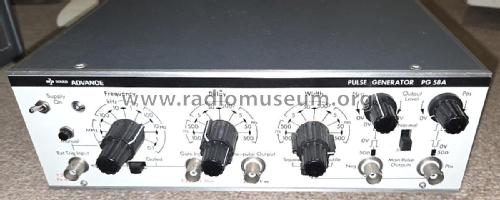

- Model: Pulse Generator PG58A - Gould Advance Ltd.; Hainault
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 277 x 100 x 265 mm / 10.9 x 3.9 x 10.4 inch
- Notes
-
A compact reliable, low-cost pulse generator.
- 0.1 Hz to 5 MHz
- Single & double pulse
- True simultaneous positive, negative, or inverted output.
- Width & delay, 100 nsec to 500 msec.
- Up to 10 V protected output from 50 Ω.
- Rise and fall times less than 10 nsec.
- External trigger & gating plus manual & pre-pulse facility.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- -- Original prospect or advert (Electronic Engineering, volume 49, number 587 January 1977.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
