Super 155WE Export

Super 155WE; Graetz, Altena (ID = 2025183) Radio Super 155WE; Graetz, Altena (ID = 2025184) Radio

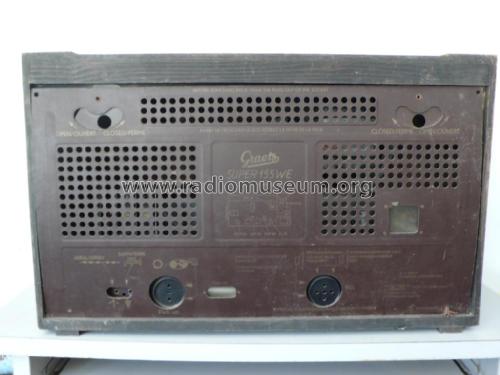

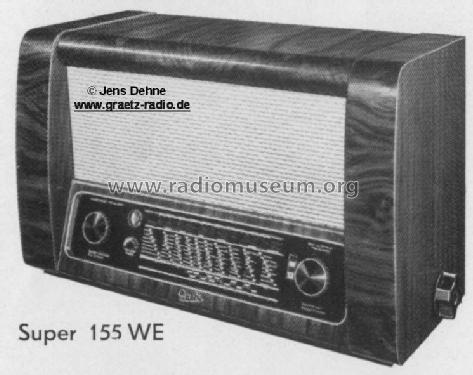

Super 155WE; Graetz, Altena (ID = 2025185) Radio Super 155WE; Graetz, Altena (ID = 561128) Radio
Use red slider bar for more.
Super 155WE; Graetz, Altena (ID = 2025183) Radio
Graetz, Altena: Super 155WE [Radio] ID = 2025183 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 155WE Export, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1952/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 EM34
Main principle Super-Heterodyne (Super in general); ZF/IF 471 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Super 155WE [Export] - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel, low profile (big size).
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Graetz Nachrichten 6 (blau)

Model page created by Walter Groer. See "Data change" for further contributors.
